Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: SOV
  • Model Number: SOV-W series
  • Type: Torque Wrench
  • Material: steel
  • Size: -
  • Name: Hot Selling Steel Material Hydraulic Wrench
  • hydraulic Wrench Torque: 2712-47454 Nm
  • hydraulic Wrench Max pressure: 700bar
  • hydraulic Wrench Nut Size: 30-55 mm to 80-155 mm
  • hydraulic Wrench Bolt Size: 20-36 mm to 52-110 mm
  • hydraulic Wrench Weight: 1.4-11.4 kg
  • Certificate: CE&ISO9001:2008
  • hydraulic Wrench min. Range: 271-4745 Nm
  • hydraulic Wrench warranty: one year
  • Hydraulic wrench delivery time: 15 days after receive payment

Packaging & Delivery

Packaging Details Hot Selling Steel Material Hydraulic Torque Wrench : wooden case
Delivery Time 15 days after receive payment

Hot Selling Steel Material Hydraulic Torque Wrench

Product Description

Description

Features:

1. Cylinders and low profile cassettes have been engineered to give ultra slim, compact low clearance tooling with a small nose radius.



2. High efficiency, fast operation due to the large nut rotation per wrench cycle9 30 degree rotation angle) and rapid return stroke.

3. All wrenches are nickel-plated for excellent corrosion protection and improved durability in harsh environment.



4. All wrenches are fitted with bronze bushings to ensure the ratchet will never seize in the sideplates, thus eliminating costly repairs.

5. Constant torque output provides high accuracy across the full stroke.

6. In-line reaction foot ensures accuracy by reducing internal deflections.



Parameter



Model

Working

Pressure(Mpa)

Nut Size

(mm)

Min. Torque (Nm)

Max. Torque

(Nm)

SOV-

W2000

70

30-55

271

2712

SOV-

W4000

70

36-65

542

5423

SOV-

W8000

70

50-75

1084

10846

SOV-

W15000

70

65-115

2033

20337

SOV-

W22000

70

75-130

3050

30510

SOV-

W35000

70

80-155

4745

47454

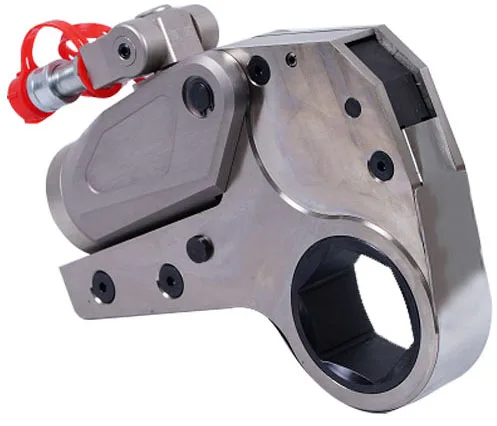

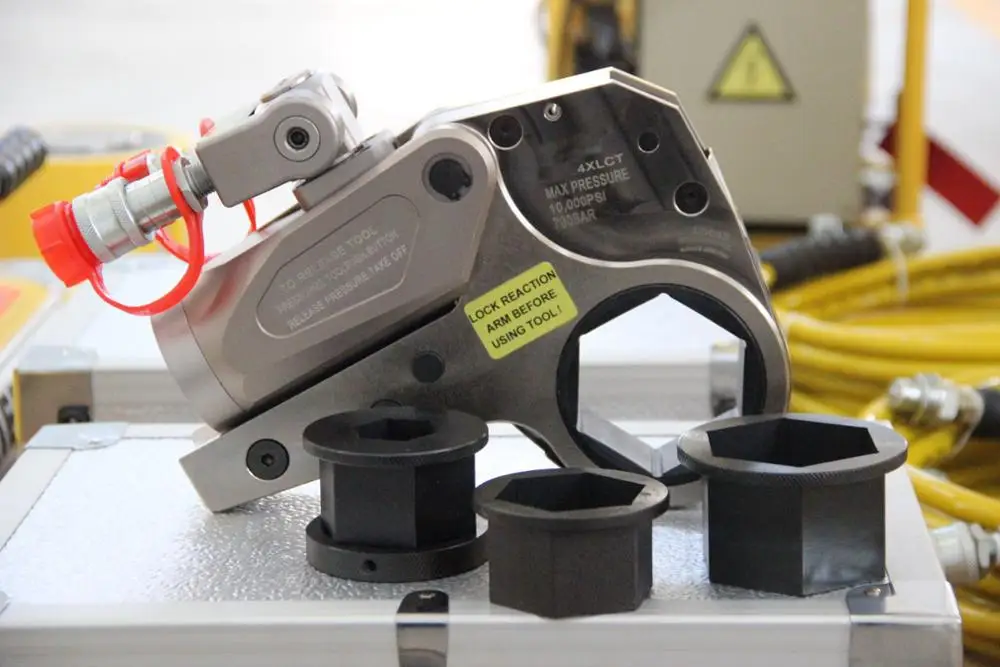

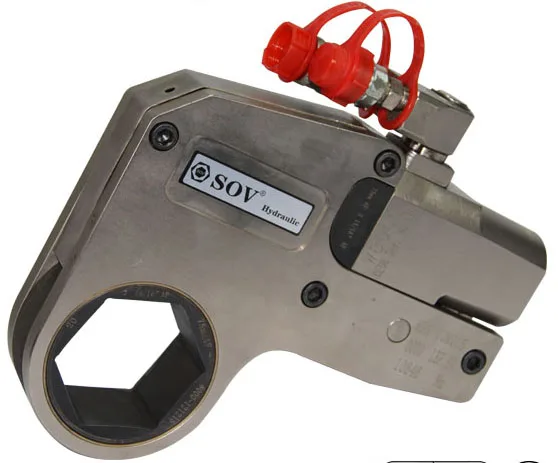

Photos

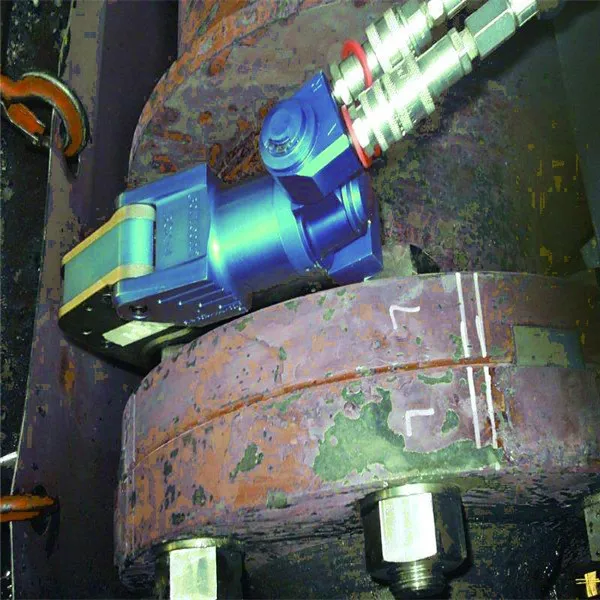

Applications



Packaging & Shipping

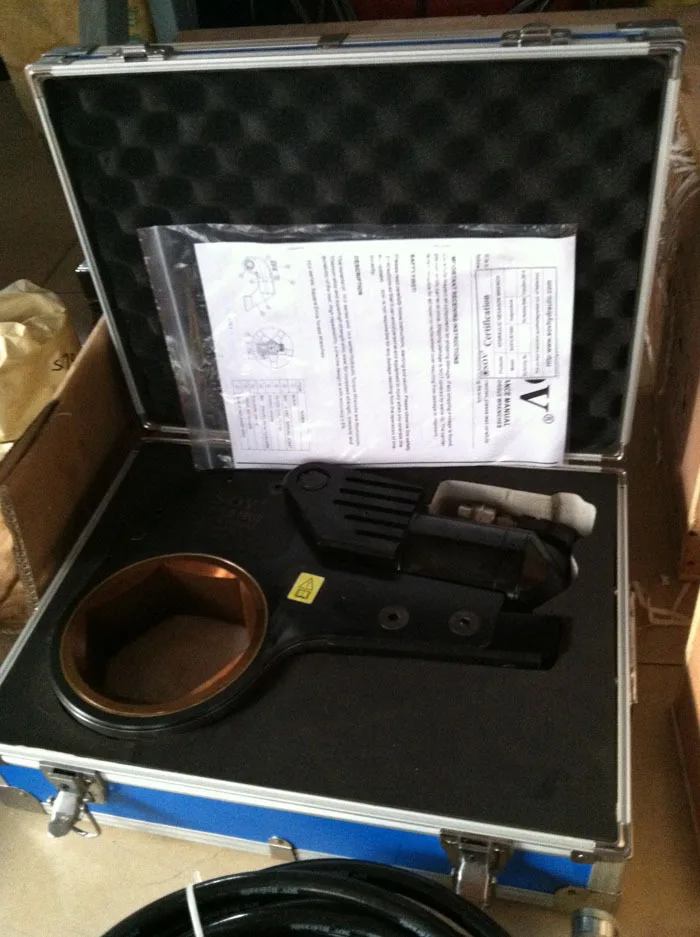

Packing: All products will be packed with wooden case;



Shipping:





1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;

2. Large quantity: by sea transportation. Goods will arrive in 10~45 days, according to the diatance.









Packaging & Shipping

Wooden case & Shipping is designated by customer for  China Hydraulic Torque Wrench





Our Services

1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.


Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.


Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.


Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.






We are a manufacturer in tools, such as:

· Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut

· Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);

· Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;

· Hydraulic pumps, manual and electric type (max up to 3000bar);

· Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

· Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose

· Hydraulic pipe cutting and beveling machine



Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

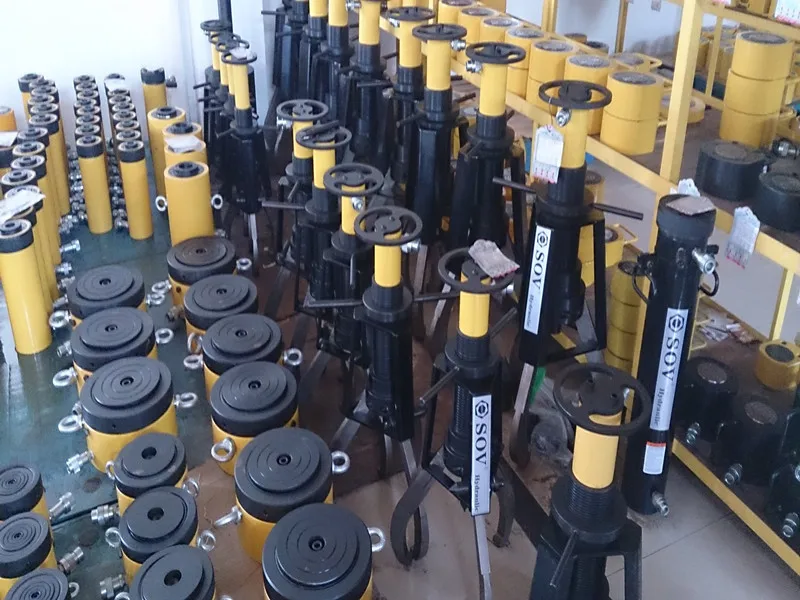

Warehouse





Certifications

CE&ISO



FAQ





Q1: How can I contact the sales?A1: Please call at 0086 21 6856 1366 for presales services or click the contact to find our email address.



Q2: How can I buy SOV products in my country?A2: Please send us an inquiry or email. We will reply to you if there are distributors in your country



Q3: Can I have SOV products catalogs and price lists?A3: Please visit our website(http://www.sovhydraulic.com)to download our Ecatalog, and send us an email for price lists.



Q4: How long does it take to get the products if I place an order?A4: If the products are in stock, we will pack and deliver in 3~7 days after confirmation of payment. The products will arrive in 3~7 days by international parcel service, or 15~45 days by shipment.



Q5: How to make payment?A5: First send us an inquiry, then we will reply to your quotation. If our price suits you, we will prepare proforma invoice with our banking details. You can choose T/T, West Union, L/C, whatever you like.



Q6: How long is the manufacturing?A6: If it is our standard products, it can be produced in 10~20 days. Otherwise, we promise to finish in 20~45 days

Team





Contact Information

Contact Person: Helen



Tel:0086-18121376369



Skype: tong.li96



Whatsapp: 008618121376369





Web: www.sovhydraulic.com









                                                   Welcome to visit our factory!
